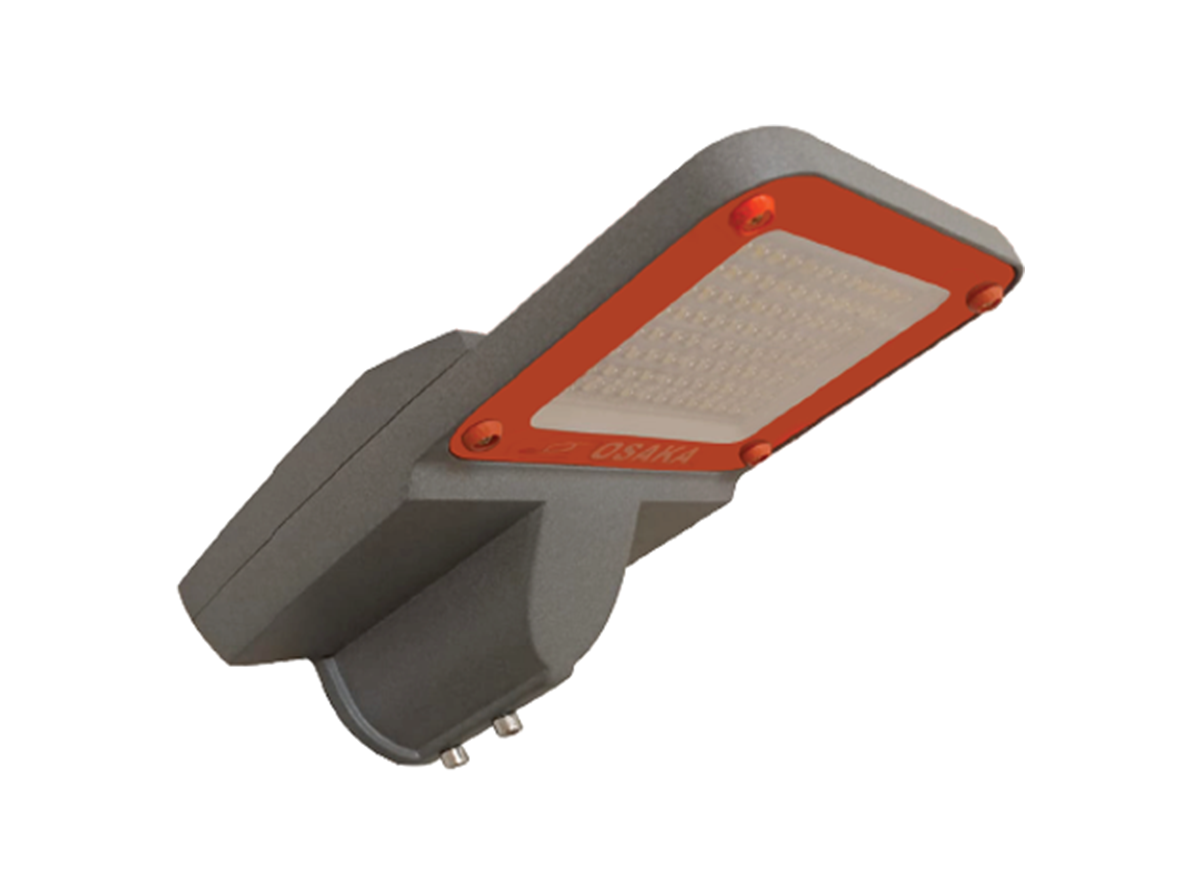

ROAD SHINE STREET LIGHT

Premium street lights for extreme outdoor environment lighting

ROAD SHINE STREET LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0029

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Attractive product design ensures city beautification
  • Low maintenance cost
  • Light up the target area without creating glare to driver and environment
  • Specially designed for ME2-5 type road applications
  • Robust mechanical design for extreme outdoor environment

SPECIFICATIONS

MODEL NO POWER (W) LUMENS (LM) EFFICIENCY (LM/W)
OS-RS-50W 50W 6500 lm 130 lm/w
OS-RS-100W 100W 13000 lm 130 lm/w
OS-RS-150W 150W 19500 lm 130 lm/w
OS-RS-200W 200W 26000 lm 130 lm/w

PRODUCT FEATURES

  • Standard CCT: 1800K, 3000K, 5700K
  • High Color Rendering: CRI > 80
  • Types of Protection: IP66 and IK07
  • Working Temperature: -40°C to +55°C
  • Can be integrated with PIR and microwave motion sensors
  • High Power Factor: Pf > 0.9
  • Class I Equipment
  • Long >50,000 hours lamp lifetime
  • Operates at 110-277VAC 50/60Hz
  • Product is made up of Die-casting Aluminum
  • Beam Angle: Batwing 150°×70° is standard, customization is available
  • Surge Protection Device of rating up to 15KV separated from driver
  • 7-Pin NEMA Socket (optional)

DIMENSIONS & WEIGHT

MODEL A (mm) B (mm) C (mm) WEIGHT (KG)
OS-RS-50W 350 180 104 1.2kg
OS-RS-100W 350 240 120 1.7kg
OS-RS-150W 450 240 120 1.95kg
OS-RS-200W 500 240 120 2.25kg
