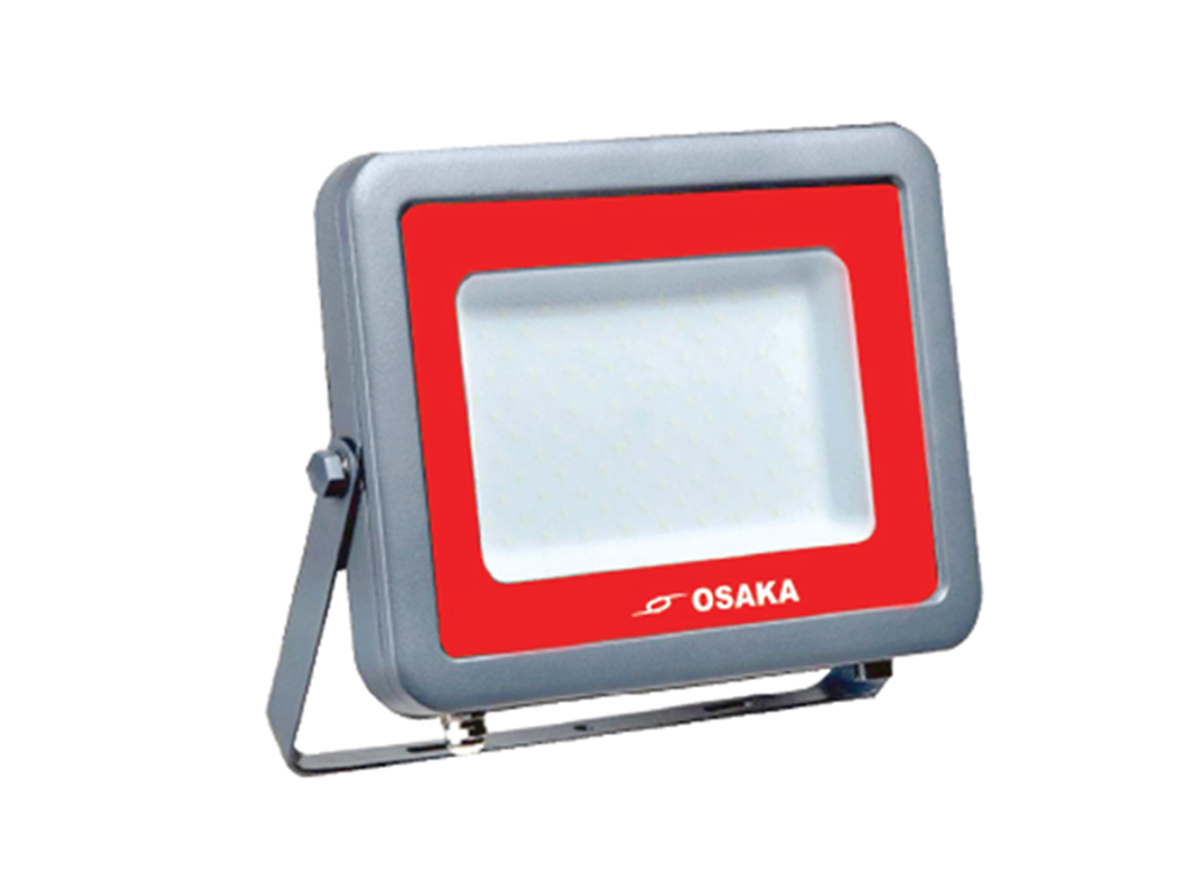

PRO FLOOD LIGHT – Durable & Versatile Flood Light for Outdoor Applications
The industrial-grade Pro Flood Light series (OS-E028E) is an exceptionally durable and versatile heavy-duty outdoor luminaire designed to meet rigorous architectural requirements. Engineered with a premium slim profile and high efficacy output, it stands as the ultimate choice for large area illumination and high-security zones.
PRODUCT BENEFITS
- Elegant Slim Profile: Minimizes aerodynamic resistance and drastically reduces windage issues in harsh weather environments.
- Flicker-Free Broadcast Quality: Advanced engineering provides flicker-free performance optimized specifically for high-definition TV Broadcast applications.
- Excellent Glare Control: Impeccable glare diffusion management ensuring highly comfortable and eye-friendly visibility.
- Sophisticated Optics Engineering: Equipped with precision optics design to target and achieve accurate desired illumination results.
- Versatile 360° Flexible Movement: Features complete 360-degree rotational flexibility on the mounting angle for perfect focal alignment on desired structures.
Technical & Performance Specifications
| MODEL NO | POWER (W) | LUMENS (LM) | EFFICIENCY (LM/W) |
|---|---|---|---|
| OS-E028E-10W | 10W | 1200 lm | 120 lm/w |
| OS-E028E-20W | 20W | 2400 lm | 120 lm/w |
| OS-E028E-30W | 30W | 3600 lm | 120 lm/w |
| OS-E028E-50W | 50W | 6000 lm | 120 lm/w |
| OS-E028E-100W | 100W | 12000 lm | 120 lm/w |
| OS-E028E-150W | 150W | 18000 lm | 120 lm/w |
| OS-E028E-200W | 200W | 24000 lm | 120 lm/w |
| OS-E028E-250W | 250W | 30000 lm | 120 lm/w |
| OS-E028E-300W | 300W | 36000 lm | 120 lm/w |
| OS-E028E-400W | 400W | 48000 lm | 120 lm/w |
Physical Dimensions (mm) & Net Weights
| MODEL NO | A (Length) | B (Height) | C (Thickness) | NET WEIGHT (KG) |
|---|---|---|---|---|
| OS-E028E-10W | 136 mm | 120 mm | 30 mm | 0.35 kg |
| OS-E028E-20W | 171 mm | 155 mm | 36 mm | 0.62 kg |
| OS-E028E-30W | 207 mm | 176 mm | 37 mm | 0.95 kg |
| OS-E028E-50W | 237 mm | 210 mm | 38 mm | 1.28 kg |
| OS-E028E-100W | 327 mm | 268 mm | 38 mm | 2.59 kg |
| OS-E028E-150W | 370 mm | 310 mm | 48 mm | 3.68 kg |
| OS-E028E-200W | 414 mm | 343 mm | 49 mm | 4.72 kg |
| OS-E028E-250W | 520 mm | 428 mm | 52 mm | 7.65 kg |
| OS-E028E-300W | 520 mm | 428 mm | 56 mm | 7.95 kg |
| OS-E028E-400W | 545 mm | 436 mm | 56 mm | 21.9 kg |
PRODUCT FEATURES & STANDARDS
- Broad CCT Options: Available in standard 2500K, 3000K, 4000K, and 5300K configurations.
- Color Rendering: High CRI > 80 ensures realistic and vibrant color reproduction.
- Environmental Protection: Dual safety integration rated at IP66 (Waterproof) and IK07 (Impact Resistant) protection parameters.
- Smart Tuya Integration: RGBCW smart technology powered seamlessly by Tuya is available upon request.
- Wide-Band Power Driver: Operates efficiently across universal ranges of 100-305VAC at 50/60Hz frequencies.
- Heavy-Duty Chassis: Fully manufactured from robust architectural Die-casting Aluminum for rapid heat dissipation.
- Optics Angle: Standard 90° beam angle distribution (further beam angle customizations are fully available).
- Smart Dimming Controls: Completely compatible and ready for intelligent DALI Control architecture.
- High Power Factor: Pf > 0.9 performance configuration for balanced industrial grid operations.
- Electrical Safety Class: Classified as standard Class I Equipment with comprehensive internal ground terminals.
- Long-Term Lifespan: Long operational longevity exceeding >50,000 maintenance-free lamp hours.
- Integrated Surge Protection: Built-in premium Surge Protection Device (SPD) to shield against voltage fluctuations and spikes.
- Extreme Climate Threshold: Operates flawlessly in extreme working temperatures ranging from -40°C to +55°C.
- Anti-Fogging Breathable System: Equipped with an external vent/respirator mechanism that actively avoids internal fogging, condensation, and frosting inside the front glass cover.
Target Applications
Perfect choice for architectural lighting contractors, heavy industry projects, and public infrastructure spaces:
- High-Security Outdoor perimeters & Boundary Fences
- Public Municipal Parks, Playgrounds, and Public Squares
- Highways, Intersections, and Access Roads
- Architectural Building Facade Uplighting & Monument Spotlighting
- Expansive Open Areas, Logistics Warehouses, and Parking Lots
- Sports Grounds, Stadium Arenas, and Track Fields
