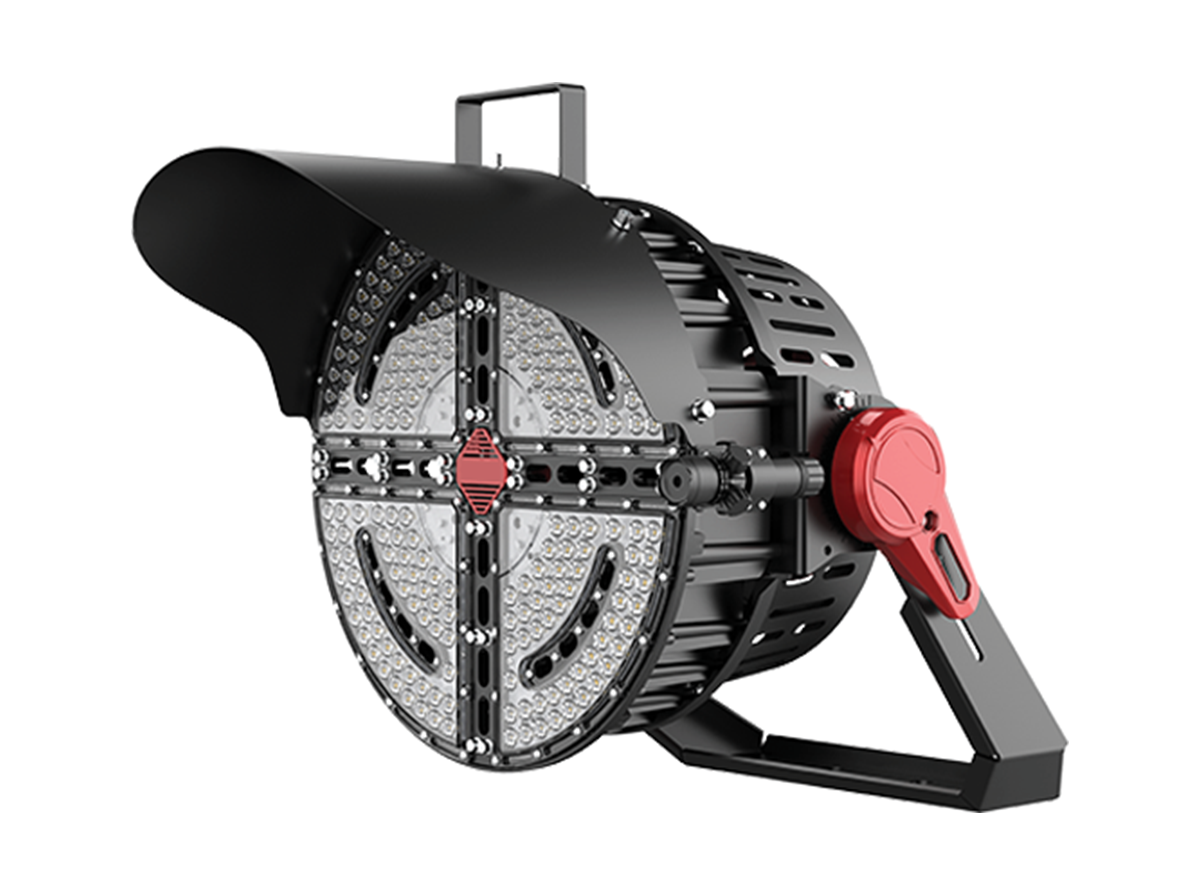

INFINITY HIGH-MAST FLOOD LIGHT

PRODUCT BENEFITS

• Special designed optics of various applications
• Lightweight and compact
• Undergone rigorous testing to ensure dust and water ingress protection
• Driver box can be mounted separately at the base of the pole
• Asymmetric optic for sports lighting; symmetric optics for flood lighting and façade and dockyard illumination
• Long life saving in maintenance cost, particularly good for difficult to access locations such as high-mast poles, façades, and rooftop billboards

SPECIFICATIONS

PRODUCT FEATURES & TECHNICAL DATA

• Standard CCT: 3000K, 4000K, 5000K, 5700K
• High Color Rendering: CRI > 80
• Types of Protection: IP66 and IK07
• Working Temperature: -40°C to +55°C
• Operates at 100-277VAC 50/60Hz
• Product is made up of Die-casting Aluminum
• Beam Angle: 15°, 30°, 45°, 80° (Customization is also available)
• Built-in or External Surge Protection Device option
• Compatible with DALI Controls
• High Power Factor: Pf > 0.9
• Class I Equipment
• Long >50,000 hours lamp lifetime
• Application: Golf Course, Sports Stadiums, Large Parking lots, Ports, Dockyards, etc.

DIMENSIONS & WEIGHT
