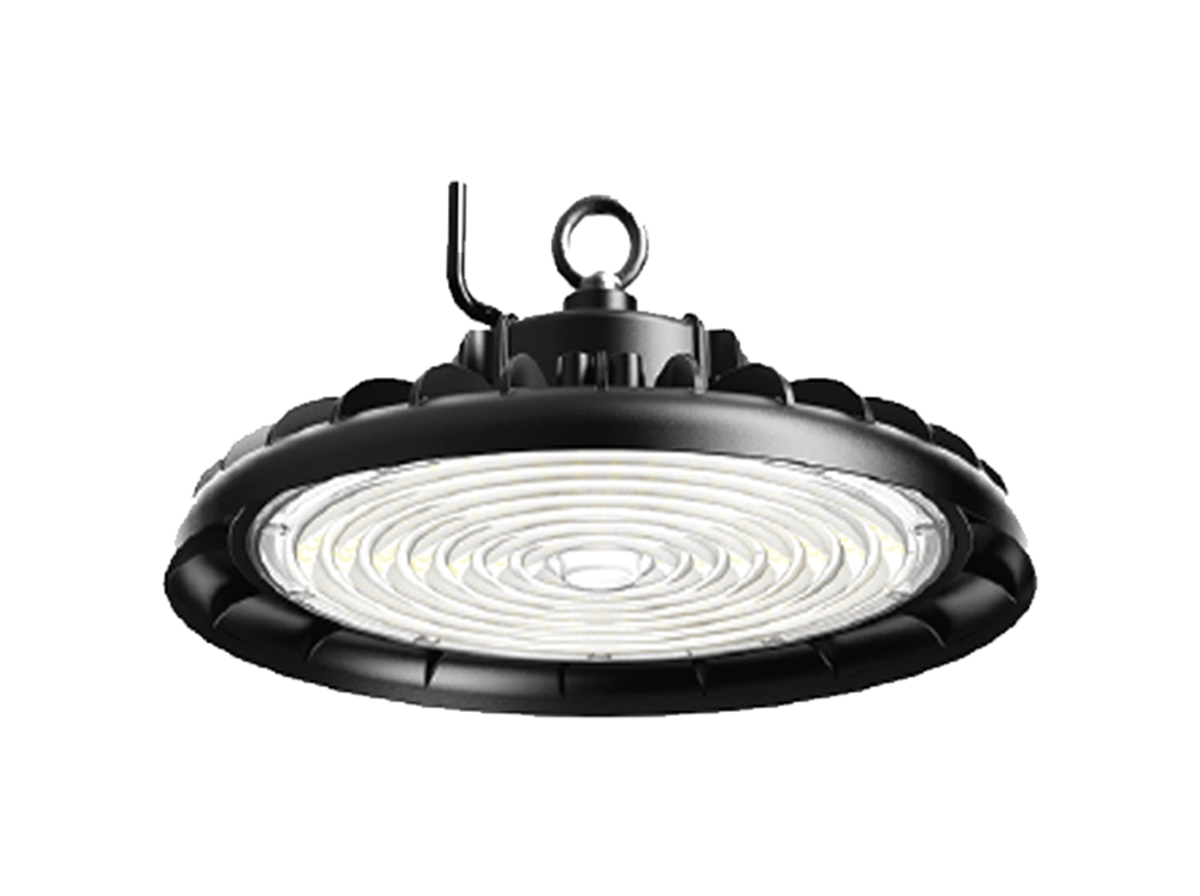

HIGH BAY LIGHT

Highly efficient and enduring luminaire for public areas and industrial halls

HIGH BAY LIGHT
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0028

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Very stable & robust design for rough environment
  • Eye Safety according to IEC
  • Excellent glare control; friendly for eyes
  • Compact and slim design
  • Sophisticated optics design ensuring desired results
  • Highly efficient product ensuring great power saving
  • Also suitable for cold storage units

SPECIFICATIONS

MODEL NO POWER (W) LUMENS (LM) EFFICIENCY (LM/W)
OS-H001E-100W 100W 16000 lm 160 lm/w
OS-H001E-150W 150W 24000 lm 160 lm/w
OS-H001E-200W 200W 32000 lm 160 lm/w
OS-H001E-250W 250W 40000 lm 160 lm/w

PRODUCT FEATURES

  • Standard CCT: 3000K, 4000K, 5300K, 6500K
  • High Color Rendering: CRI > 80
  • Types of Protection: IP65 and IK08
  • Working Temperature: -40°C to +55°C
  • Can be integrated with PIR and microwave motion sensors
  • High Power Factor: Pf > 0.9
  • Class I Equipment
  • Long >50,000 hours lamp lifetime
  • Operates at 100-305VAC 50/60Hz
  • Product is made up of Die-casting Aluminum
  • Beam Angle: 90° is standard, customization is available
  • Built-in Surge Protection Device
  • Application: Warehouses, Public Areas, Factory Sheds, Working Halls, etc.

DIMENSIONS & WEIGHT

MODEL A (mm) B (mm) WEIGHT (KG)
OS-H001E-100W Ø250 143 1.63 kg
OS-H001E-150W Ø250 143 2.00 kg
OS-H001E-200W Ø360 144 2.38 kg
OS-H001E-250W Ø360 144 3.00 kg
