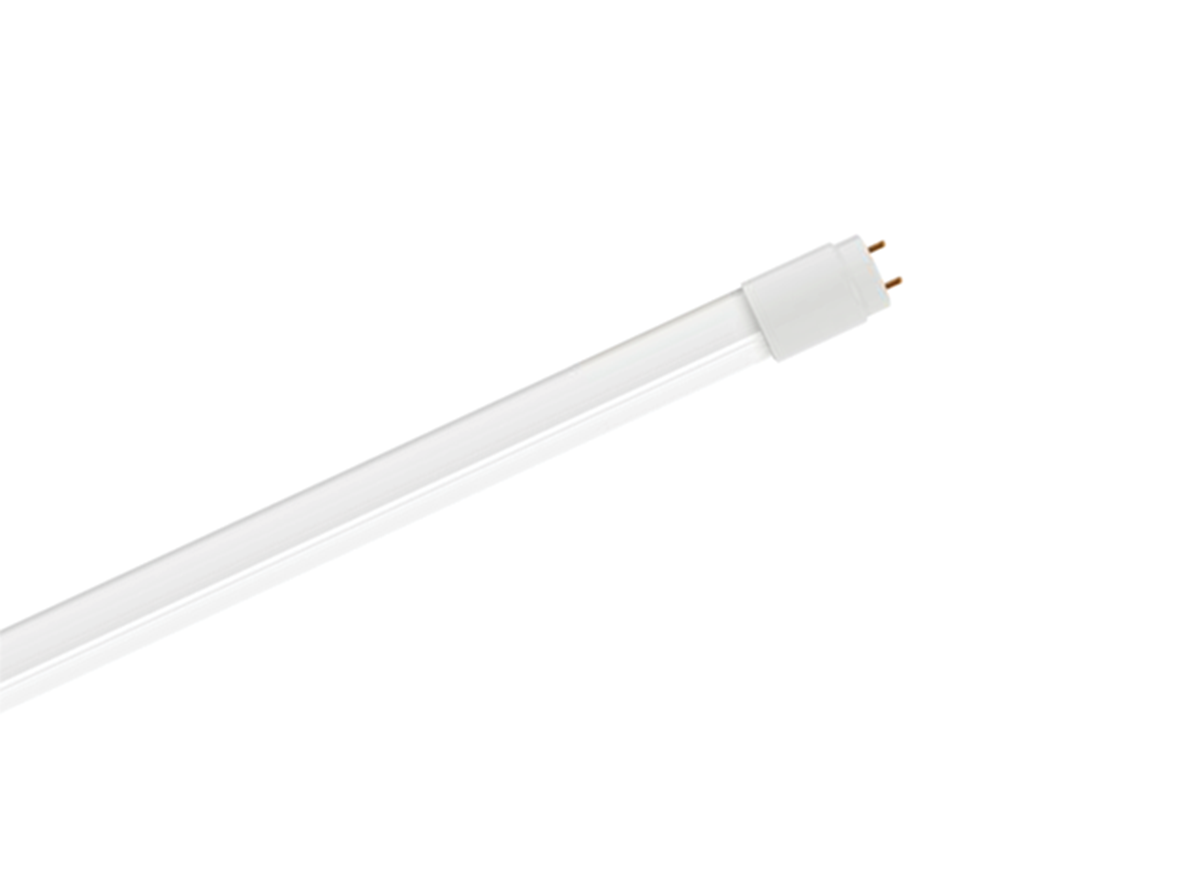

T8 TUBE RODS

Highly efficient and reliable SMD Tube rods for Industrial and Commercial applications

T8 TUBE RODS
PRODUCT LOG
ARCHIVE VER: 2026.01
NODE ID: #0030

Technical Analysis & System Configuration

Comprehensive specification matrix and operational blueprints loaded from certified databases.

PRODUCT BENEFITS

  • Continuous Uniform lighting
  • Specially designed for 24/7 industrial usage
  • Unique feature of multiple power-input options; Two-end & One-end
  • Retrofit design to replace fluorescent tube rods
  • Uniquely designed cover ensures eyes friendly usage and even light distribution

SPECIFICATIONS

MODEL NO POWER (W) LUMENS (LM) EFFICIENCY (LM/W) SIZE
High Efficiency Series
OS-T8-9W 9W 1000 lm 111 lm/w 2ft / 0.6m
OS-T8-18.5W 18.5W 2400 lm 130 lm/w 4ft / 1.2m
OS-T8-30W 30W 3600 lm 120 lm/w 4ft / 1.2m
OS-T8-20W 20W 2400 lm 120 lm/w 5ft / 1.5m
Ultra Efficiency Series
OS-T8-10.5W 10.5W 1600 lm 152 lm/w 4ft / 1.2m
OS-T8-14W 14W 2100 lm 150 lm/w 4ft / 1.2m
Super Efficiency Series
OS-T8-8.5W 8.5W 1600 lm 188 lm/w 4ft / 1.2m
OS-T8-12W 12W 2100 lm 175 lm/w 4ft / 1.2m

PRODUCT FEATURES

  • Standard CCT: 3000K, 4000K, 6500K
  • High Color Rendering: CRI > 80
  • Types of Protection: IP54
  • Long >50,000 hours lamp lifetime
  • Operates at 95-265VAC 50/60Hz
  • Product is made up of Die-casting Aluminum and Polycarbonate
  • Beam Angle: 180°
  • High Power Factor: Pf > 0.9
  • Class II Equipment
  • Lamp Base: G13

DIMENSIONS & WEIGHT

MODEL A (mm) B (mm)
OS-T8-9W Ø26 598
OS-T8-18.5W Ø26 1198
OS-T8-30W Ø26 1198
OS-T8-20W Ø26 1498
OS-T8-10.5W Ø26 1198
OS-T8-14W Ø26 1198
OS-T8-8.5W Ø26 1198
OS-T8-12W Ø26 1198
