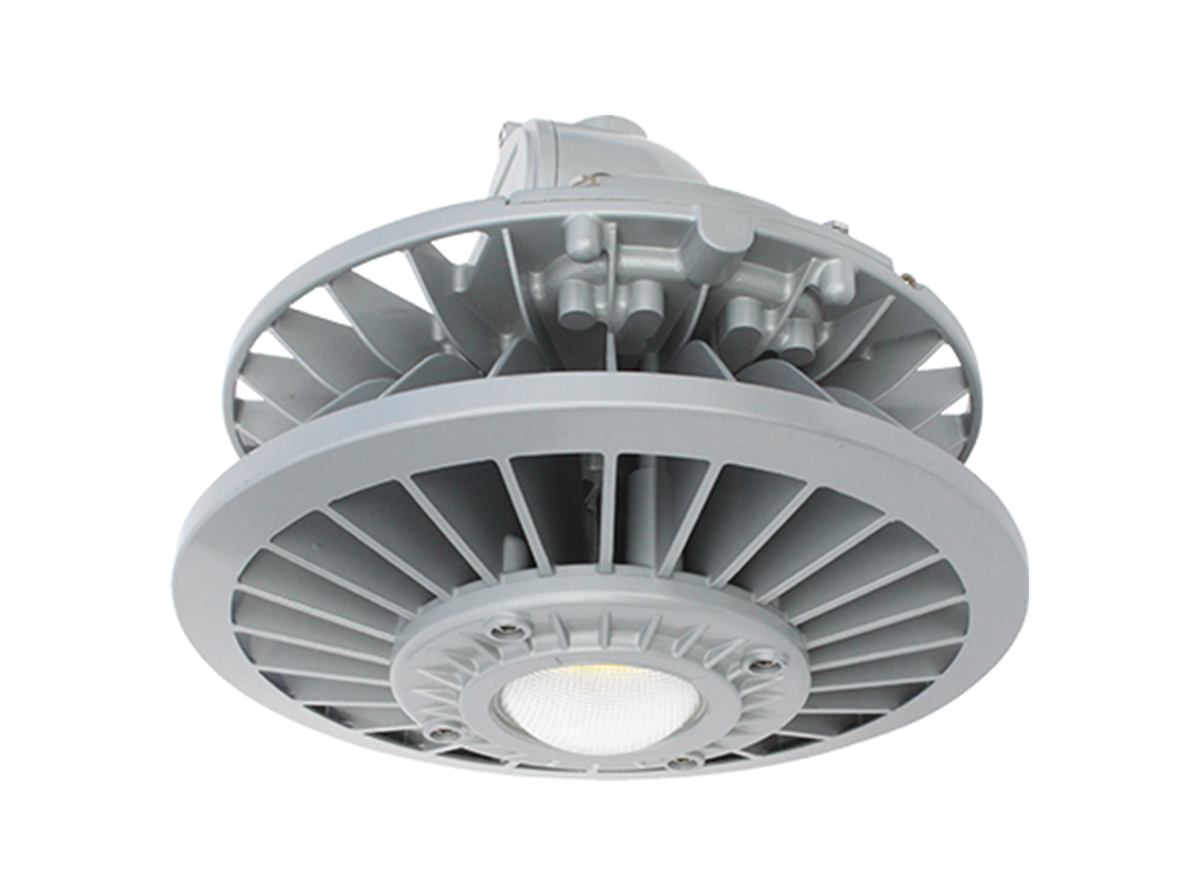

EXPLOSION PROOF FLOOD/ HIGHBAY/ STREET LIGHT

PRODUCT BENEFITS

• A full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature environments.
• Windward area is only 30% of the traditional lamp suitable for high altitude winds area.
• Intelligent control functions can be integrated.
• It adopts imported light source, no dark spot, energy-saving is 60% more than Metal Halide Lamp.
• The adjustable locking device on the bracket can tightly fix the lamp to any desired angle, making the lamp resist to harsh vibration.
• Variety of light distribution and variety of installation types for diversified operational requirements.
• Uses high-tech anti-corrosion surface treatment technology, suitable for hazardous working areas.

PRODUCT FEATURES

• Standard CCT: 3000K, 4000K, 5000K
• Beam Angle: Standard 100°, Optional: 40°, 60°, 80°, 60°×80°, 90°×110°
• High Color Rendering: CRI>80
• High Power Factor: Pf> 0.9
• Types of protection: IP66
• Long >50,000 hours lamp lifetime
• Operates at 90-264VAC 50/60Hz
• Working Temprature: -40°C to +55°C
• Gas explosive environment: Group IIA, IIB, IIC.
• Zone1, Zone2; Zone21, Zone22
• Cable Entry: M20×1.5, M25×1.5, G3/4", NPT1/2", NPT3/4"
• Class I Equipment
• Product is made up of Die-casting Aluminum. All exposed fasteners adopt 304 stainless steels
• Application: Suitable for Low installation height in Moist corrosive environment, such as offshore drilling platform, Oil Terminal, etc. Ideal to be used in the environment of flammable gas, steam and dust environment, such as Petrochemical Plant, Chemical Plant, Coal Washery, Pharmaceutical Factory, etc. Areas for high demand of high temperature performance.
• Ex marking: Ex db IIC T5/T4/T3 Gb | Ex tb IIIC T95°C/T130°C/T195°C Db

DIMENSIONS ( mm )
