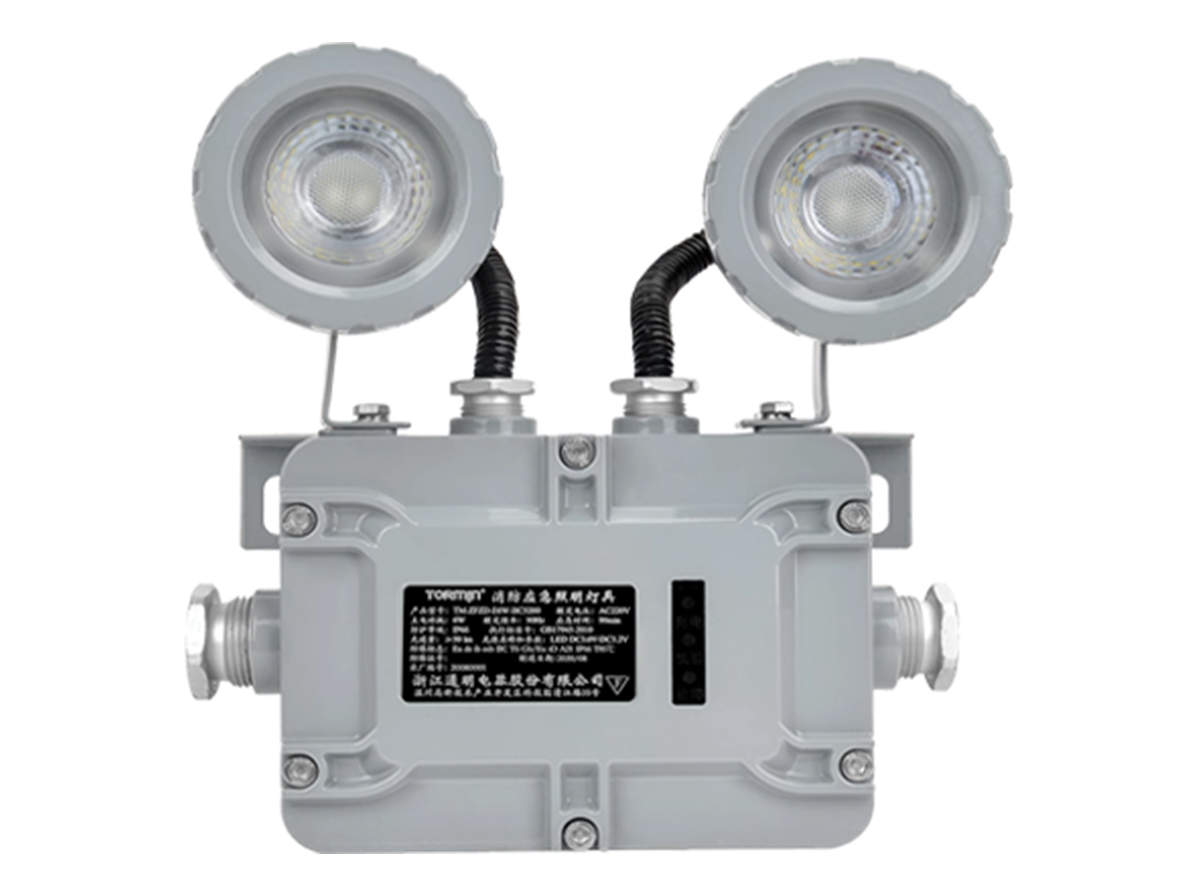

EXPLOSION PROOF FIRE EMERGENCY LIGHT

PRODUCT BENEFITS

• This product has an aluminum alloy shell, electrostatic spraying on the surface, beautiful appearance, & high waterproof, dustproof & anticorrosion functions.
• The transparent cover and the shell are treated with an adhesive structure, which can be used in harsh working conditions indoors andoutdoors for a long time, with a protection level of IP66.
• The lamp has a force start function and can be controlled locally or centrally.
• The cable is introduced into the wiring cavity through the outer diameter of the cable and connected to the wiring terminal. There are grounding screws inside and outside the shell. Users should reliably ground when using this product.
• It has a monthly inspection function, which automatically discharges once a month, & the emergency working state is maintained for 120s, & the main power state is automatically restored.
• It has an annual inspection function, which automatically switches fromthe main power to the emergency working state every other year and continues until the discharge ends, and then automatically restores the main power state.

DIMENSIONS ( mm )

PRODUCT FEATURES

• Standard CCT: 5000K
• Long >50,000 hours lamp lifetime
• Cable Entry: G3/4"
• Operates at 220VAC 50/60Hz
• Applicable to IIA, IIB, IIC and IIIA, IIIB, IIC combustible environments;
• Applicable to explosive gas or dust environment Zone 1, Zone 2 or Zone 21, Zone 22;
• Product is made up of Die-casting Aluminum. All exposed fasteners adopt 304 stainless steels
• Application: Hazardous places with high moisture and corrosion protection level
• Executive Standard: GB/T 3836 GB17945
• Ex mark: Ex d IIC T6 Gb | Ex tD A21 IP66 T85°C
• Types of protection: IP66
• Temperature Groups: T1-T6.
• Class I Equipment
