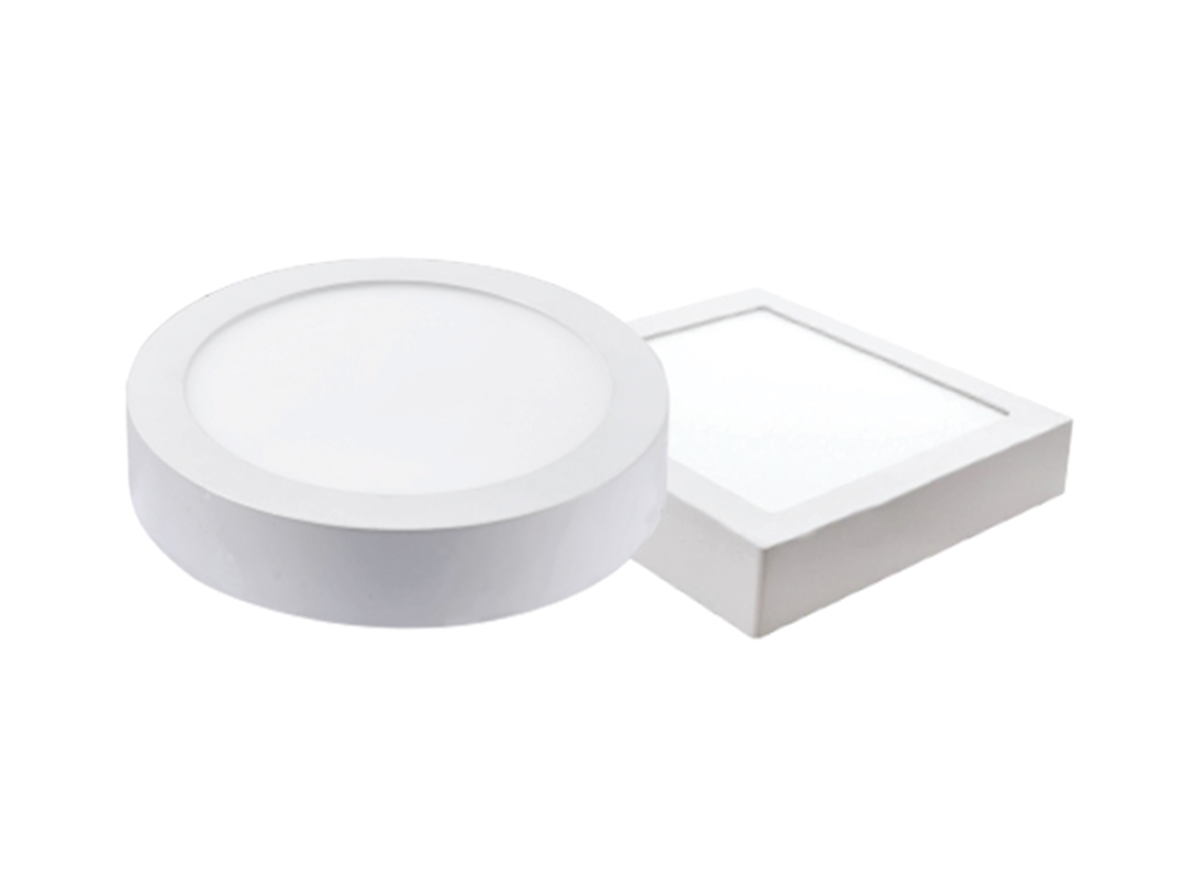

SURFACE-MOUNTED PANEL DOWNLIGHT: Architectural Indoor LED Downlights
The Surface-Mounted Panel Downlight (OS-FPV.2 Series) is a premium indoor lighting fixture engineered for spaces where recessed installation is not feasible. Equipped with a unique mounting frame, these panels deliver clean, seamless aesthetics combined with top-tier energy efficiency and heavy-duty performance.
Product Benefits
- Uniform Light Distribution: Features an integrated heat-resistance lens ensuring a perfectly balanced and wide light spread.
- Visual Comfort: Provides a smooth, glare-free feel that is highly comfortable and safe for the eyes during long working hours.
- Anti-Yellowing Longevity: The premium front cover lens is engineered to resist degradation and does not turn yellow with long-term usage.
- Design Formats: Available in both classic Round and sharp Square shapes to blend flawlessly with any interior layout.
Technical Specifications & Output Matrix
Detailed breakdown of power consumption, lumens output, and high luminous efficiency across all surface models:
| Model Number | Power (W) | Lumens (LM) | Efficiency (LM/W) |
|---|---|---|---|
| OS-FPV.2-8W | 8W | 640 lm | 80 lm/w |
| OS-FPV.2-12W | 12W | 1200 lm | 100 lm/w |
| OS-FPV.2-18W | 18W | 1800 lm | 100 lm/w |
| OS-FPV.2-24W | 24W | 2200 lm | 92 lm/w |
Physical Dimensions (mm)
Exact measurements for sizing and overhead planning of surface installations:
1. ROUND SURFACE MODELS
| Model No. | A (Outer Diameter Ø) | B (Total Profile Height) |
|---|---|---|
| OS-FPV.2-8W | Ø117 mm | 43 mm |
| OS-FPV.2-12W | Ø172 mm | 43 mm |
| OS-FPV.2-18W | Ø227 mm | 43 mm |
| OS-FPV.2-24W | Ø300 mm | 32.5 mm |
2. SQUARE SURFACE MODELS
| Model No. | A (Width x Length) | B (Total Profile Height) |
|---|---|---|
| OS-FPV.2-8W | 117 mm | 43 mm |
| OS-FPV.2-12W | 172 mm | 43 mm |
| OS-FPV.2-18W | 227 mm | 43 mm |
| OS-FPV.2-24W | 272 mm | 33 mm |
Product Features & Engineering Standards
- Standard CCT Options: Available in standard color temperatures: 3000K, 4000K, and 6500K.
- Wide Optics: 120° beam angle covers extensive ground areas uniformly.
- High Color Fidelity: Color Rendering Index (CRI) > 80 ensures realistic environment tones.
- High-End Construction: Entirely manufactured using strong, thermal-grade Polycarbonate (PC).
- Power Efficiency: High Power Factor (Pf > 0.9) driver filters distortion and prevents energy leakage.
- Easy Mounting Method: Surface mounting configuration utilizing a uniquely engineered sleek chassis frame.
- Smart Controls: Fully compatible with architectural DALI and 0-10V dimming systems.
- Electrical Input: Operates reliably over an input voltage spectrum of 95-265VAC, 50/60Hz.
- Emergency Configuration: Easily fits and couples with an Emergency Power Bank system.
- Ingress & Electrical Safety: IP44 rating (splash/dustproof) and Class II Equipment safety insulation.
- Heavy-Duty Lifespan: Exceptional operational lifespan lasting more than >50,000 hours.
Suited Applications
Optimized for architectural layouts in commercial, institutional, and residential buildings:
- Smart Classrooms & Educational Complex Zones
- Corporate Offices & Modern Administrative Units
- High-End Meeting Rooms & Conference Spaces
- Hospitals, Diagnostics Centers & Medical Reception Areas
- Large Working Halls, Lobbies, and Utility Corridors
