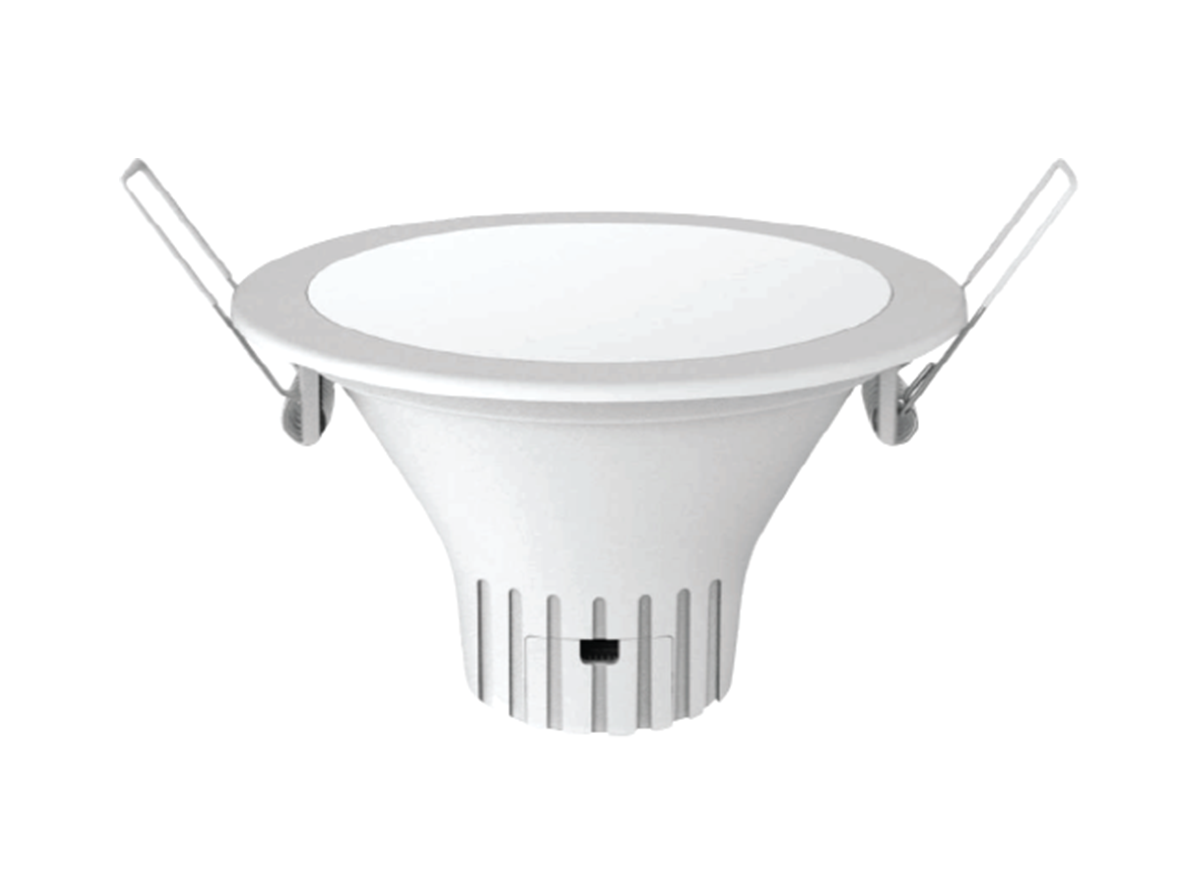

S-CLASS DOWNLIGHT – Simple Recessed Downlights for Indoor Use
The S-Class Downlight series offers high-performance, simple recessed downlights engineered specifically for modern indoor environments. Built with high-grade polycarbonate, these fixtures deliver exceptional energy efficiency and visual comfort.
PRODUCT BENEFITS
- Uniform Light Distribution: Integrated heat resistance lens ensures balanced light coverage across the room.
- Visual Eye Comfort: Delivers a smooth and glare-free feel that is completely comfortable to the eyes.
- Anti-Yellowing Lens: The premium front cover lens does not get yellow even with long-term usage.
- Trimless Availability: A modern Trimless version is also available for a seamless ceiling finish.
Technical & Performance Specifications
| MODEL NO | POWER (W) | LUMENS ( LM) | EFFICIENCY (LM/W) |
|---|---|---|---|
| OS-18-2A | 7W | 700 lm | 100 lm/w |
| OS-18-4A | 12W | 1200 lm | 100 lm/w |
| OS-18-6A | 18W | 1800 lm | 100 lm/w |
| OS-18-8A | 22W | 2200 lm | 100 lm/w |
Physical Dimensions & Cutout Sizes (mm)
| MODEL | A (Outer Diameter Ø) | B (Height/Depth) | CUTOUT Size |
|---|---|---|---|
| OS-18-2A | Ø109 | 58 | Ø76 |
| OS-18-4A | Ø127 | 68 | Ø94 |
| OS-18-6A | Ø180 | 45 | Ø140-160 |
| OS-18-8A | Ø230 | 46 | Ø190-210 |
PRODUCT FEATURES
- Standard CCT: Available in 3000K, 4000K, and 6500K spectrums.
- Beam Angle: 100° beam angle for targeted yet wide illumination coverage.
- High Color Rendering Index: CRI > 80 for realistic ambient colors.
- Premium Body Material: Product is fully made up of durable Polycarbonate (PC).
- High Power Factor: Pf > 0.9 driver configuration for high operational safety.
- Voltage Band: Operates smoothly at standard 220-240VAC 50/60Hz.
- Ingress Protection: Rated with IP44 protection (dust and moisture resistant).
- Safety Standards: Certified as Class II Equipment insulated protection.
- Extended Lifespan: Engineered for a long lamp lifetime of over >50,000 hours.
Suited Applications
Perfectly optimized for indoor residential, educational, and commercial facilities:
- Modern Classrooms & Institutional Hubs
- Corporate Offices & Cubicle Areas
- Executive Meeting Rooms & Conference Spaces
- Hospitals, Clinics & Healthcare Common Rooms
- Public Working Halls & Indoor Living Spaces
