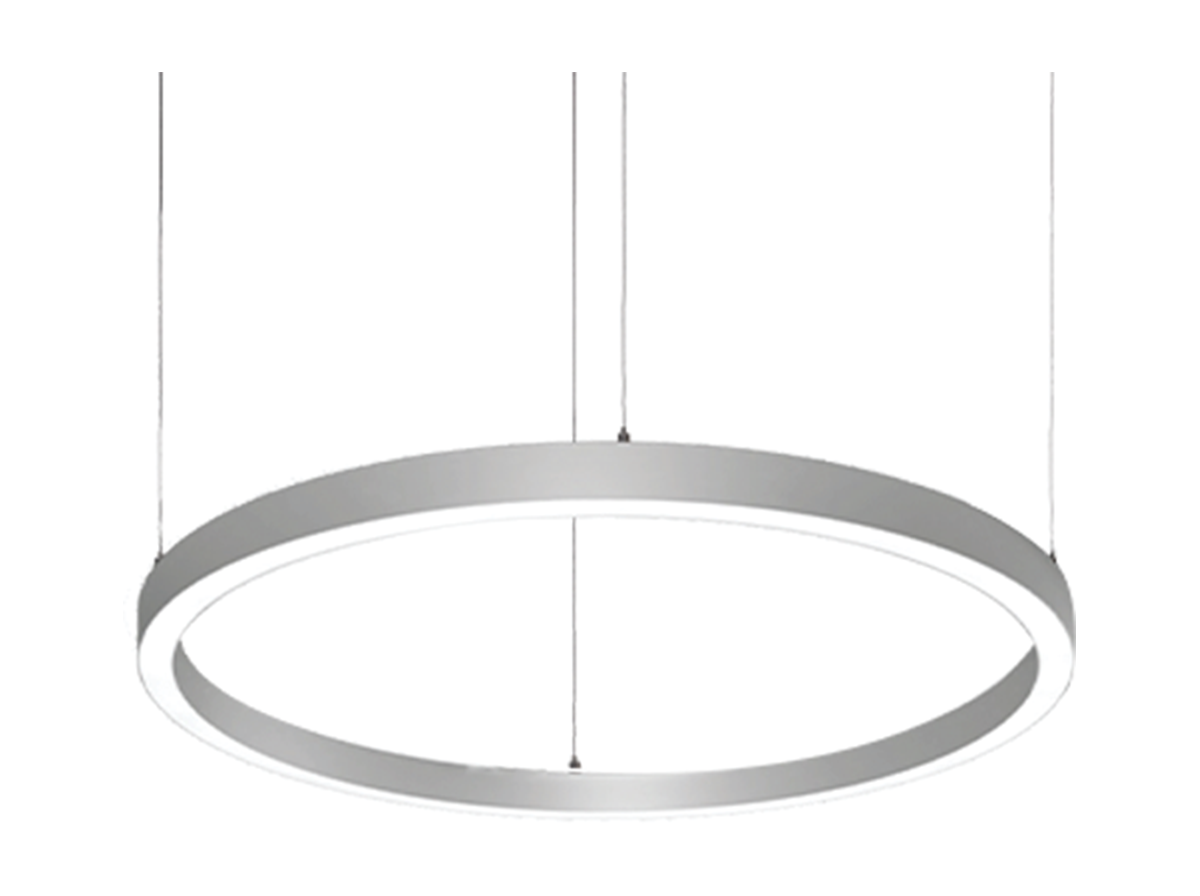

RING LIGHT – Premium Suspended Ring Shaped Architectural Luminaires
The Architectural Ring Light series (OS-RING-40W) consists of high-end suspended ring-shaped luminaires meticulously designed to add modern elegance, geometric beauty, and premium illumination to contemporary spaces. Engineered with robust materials and versatile smart dimming options, it is the perfect architectural feature light.
PRODUCT BENEFITS
- Pattern Grouping Versatility: Can be easily grouped into multiple dynamic patterns and clusters to match unique architectural layouts and design styles.
- Sleek & Minimalist Design: Smooth profile finish provides an elegant aesthetic impact even when turned off.
- Advanced Dimming Versatility: Fully supports various high-end dimming control modes including 0-10V, DALI, Triac, and RGBW configuration setups.
- High Visual Comfort: Emits a soft, diffused light beam that keeps environments well-lit without causing eye strain.
- Scalable Profile Sizes: Different profile sizes are readily available to ensure precise illumination regardless of space volume.
Technical Specifications & Performance Matrix
| MODEL NO | POWER (W) | LUMENS ( LM) | EFFICIENCY (LM/W) |
|---|---|---|---|
| OS-RING-40W | 40W | 4400 lm | 100 lm/w |
Physical Profile Dimensions (mm)
| MODEL | A (Outer Ring Diameter Ø) | B (Profile Width) | C (Profile Height/Depth) |
|---|---|---|---|
| OS-RING-40W | Ø600 mm | 32 mm | 38 mm |
PRODUCT FEATURES & STANDARDS
- Standard Correlated Color Temperature (CCT): Available in flexible 3000K, 4000K, and 6500K spectrum profiles.
- Optics Distribution: 120° wide beam angle for widespread light dispersion.
- Color Rendering Fidelity: High CRI > 80 ensures pristine environmental color definition.
- Heavy-Duty Structure: Constructed from premium architectural-grade Die-casting Aluminum for advanced heat dissipation.
- High Power Factor Driver: Pf > 0.9 performance filters electricity usage safely.
- Suspension Configuration: Designed as a suspended overhead wire ceiling mounting layout.
- Operating Voltage Requirements: Runs smoothly across alternating currents of 220-240VAC at 50/60Hz frequencies.
- Environmental Protection Core: Rated with IP54 protection shielding (dust and splash resistant).
- Insulation Classification: Rated as robust Class I Equipment with ground safety integration.
- Long-Term Longevity: Extended maintenance-free lamp lifetime lasting well over >50,000 operational hours.
Target Applications
Perfect fit for architectural lighting designs, retail showrooms, and design-centric premium facilities:
- Modern Corporate Offices, Design Agencies & Creative Workspaces
- Luxury Hotels, Boutique Lobbies & Executive Reception Hubs
- Premium Retail Outlets, Fashion Showrooms & Brand Display Zones
- Large Scale Supermarkets & Commercial Malls
- Themed Restaurants, Dining Halls & Upmarket Cafes
