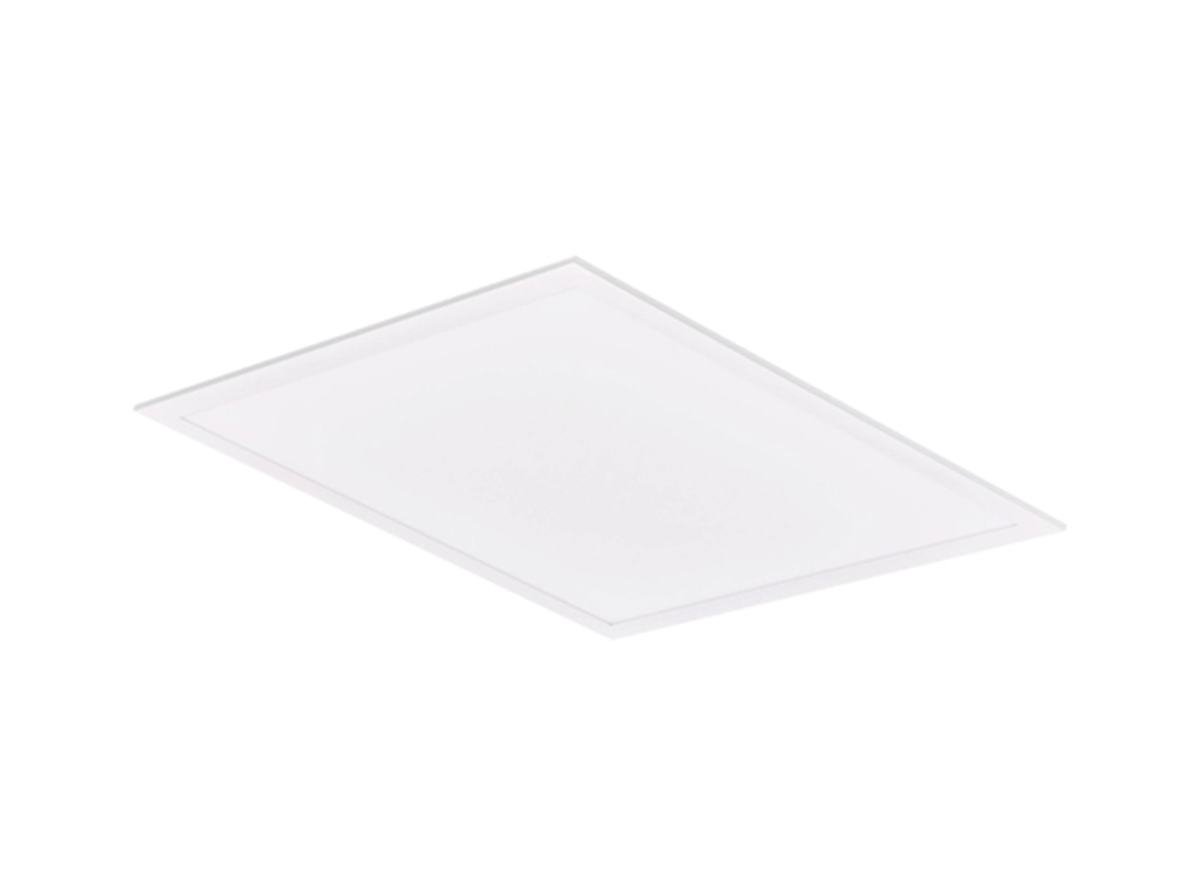

LED SMART PANEL – Recessed Panel Luminaires for Indoor Use
The premium LED Smart Panel series (OS-SM-40W) consists of high-end recessed panel luminaires meticulously designed for modern commercial and institutional indoor spaces. Offering superior lumen efficiency and versatile mounting options, these panels provide clean, professional illumination.
PRODUCT BENEFITS
- Uniform Light Distribution: Engineered with an integrated heat resistance lens for perfectly balanced light diffusion.
- Advanced Eye Comfort: Delivers a smooth and glare-free feel that is highly comfortable to the eyes.
- Anti-Yellowing Lens Tech: High-quality front cover lens does not turn yellow with long-term usage.
- Standard Sizes Available: Comes in versatile 1'x4' and 2'x2' dimensions to fit standard grid layouts.
Technical Specifications & Performance Matrix
| MODEL NO | POWER (W) | LUMENS ( LM) | EFFICIENCY (LM/W) |
|---|---|---|---|
| OS-SM-40W | 40W | 4400 lm | 110 lm/w |
Physical Dimensions (mm)
| MODEL | A (Width) | B (Length) | C (Thickness) | Corresponding Size Configuration |
|---|---|---|---|---|
| OS-SM-40W | 595 mm | 595 mm | 35 mm | Standard 2'x2' Layout |
| OS-SM-40W | 295 mm | 1195 mm | 35 mm | Standard 1'x4' Layout |
PRODUCT FEATURES
- Standard CCT Options: Available in 3000K, 4000K, and 6500K color temperatures.
- Beam Optics: Wide 120° beam angle for broad, uniform space illumination.
- Color Rendering: High Color Rendering Index (CRI > 80) for vivid spatial detailing.
- Premium Chassis: High-grade architecture constructed from Polycarbonate and Aluminium.
- High Power Factor: Pf > 0.9 driver design for minimized electrical strain.
- Flexible Mounting Styles: Fully supports T-Grid Drop Ceiling, Hanging, and Surface Mounting configurations (with additional frame).
- Smart Dimming Compatibility: Works seamlessly with DALI and industry-standard 0-10V dimming technologies.
- Operational Power: Runs flawlessly on alternating current systems of 220-240VAC 50/60Hz.
- Emergency Integration: Can be optionally fitted and equipped with an Emergency Power Bank.
- Environmental Protection: IP54 rating (excellent resistance to dust and light water splashes).
- Equipment Class: Certified as Class II Equipment with premium insulated safety.
Target Applications
Perfect choice for commercial environments, municipal systems, and educational facilities:
- Modern Classrooms, Lecture Halls, and Libraries
- Corporate Offices, Open-Plan Co-working Areas, and Cubicles
- Professional Executive Meeting Rooms & Boardrooms
- Hospitals, Diagnostics Centers, and Patient Common Areas
- Public Working Halls, Corridors, and Retail Environments
