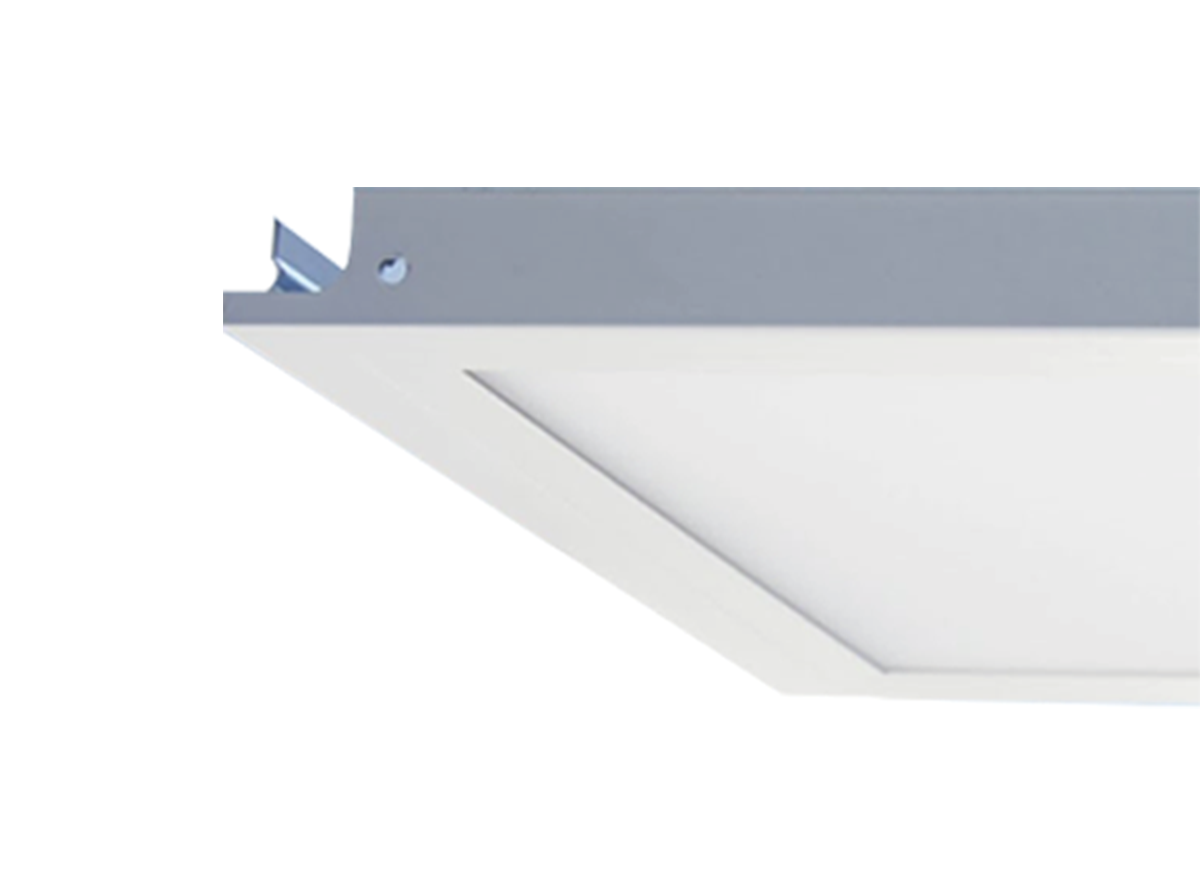

CLIP-IN RECESSED PANEL LIGHT – Premium Luminaires for Dampa Ceiling
The Clip-In Recessed Panel Light (OS-6060-DC) is a specialized architectural indoor lighting solution engineered to seamlessly clip into metal clip-in ceilings (also known as Dampa Ceilings). Delivering exceptional luminous efficacy, this series offers high-end performance for modern interior infrastructures.
PRODUCT BENEFITS
- Specialized Compatibility: Specially designed for metal clip-in ceiling systems (aka Dampa Ceiling) for a flawless integrated look.
- Uniform Light Distribution: Integrated heat resistance lens ensures a perfectly balanced, wide flood distribution of light.
- Visual Comfort: Provides a smooth, glare-free feel that guarantees superior comfort to the eyes.
- Long-Term Clarity: Front cover lens is treated with anti-yellowing properties, maintaining pristine clarity over extended usage.
- Standard Architectural Sizes: Available in industry-standard 1'x4' and 2'x2' size configurations.
Technical Specifications & Output Matrix
| MODEL NO | POWER (W) | LUMENS ( LM) | EFFICIENCY (LM/W) |
|---|---|---|---|
| OS-6060-DC | 40W | 4400 lm | 110 lm/w |
Physical Dimensions (mm)
| MODEL | A (Width) | B (Length) | C (Thickness) | Ceiling Layout Size |
|---|---|---|---|---|
| OS-6060-DC | 600 mm | 600 mm | 13.6 mm | Standard 2'x2' Grid |
| OS-6060-DC | 300 mm | 1200 mm | 13.6 mm | Standard 1'x4' Grid |
PRODUCT FEATURES
- Standard CCT Options: Available in 3000K, 4000K, and 6500K to support customized lighting atmospheres.
- Beam Optics: Wide 120° beam angle for expansive environment illumination.
- Color Rendering: High Color Rendering Index (CRI > 80) for vibrant and accurate color detailing.
- Premium Hybrid Housing: Engineered cleanly using a combination of Polycarbonate and high-grade Aluminium.
- High Power Factor: Pf > 0.9 driver filters distortion and guarantees optimal power conversion.
- Mounting Application: Uniquely designed to clip cleanly directly into standard Dampa Ceilings.
- Smart Controls: Fully compatible with architectural DALI and industry-standard 0-10V dimming technologies.
- Operating Voltage Band: Runs smoothly across alternating current ranges of 220-240VAC at 50/60Hz.
- Emergency Infrastructure: Ready to be optionally paired and equipped with an Emergency Power Bank.
- Ingress & Electrical Protection: IP54 protection rating (excellent dust and water splash resistance) alongside Class II Equipment safety insulation.
- Commercial Grade Lifespan: Long operational lifespan exceeding >50,000 hours of lamp lifetime.
Target Applications
Specially recommended for corporate complexes, high-traffic corridors, and architectural projects featuring clip-in metal structures:
- Modern Classrooms, Lecture Halls, and Academic Facilities
- Corporate Offices, Executive Suites, and Open-Plan Workspaces
- Professional Meeting Rooms, Conference Areas, and Boardrooms
- Hospitals, Diagnostics Labs, Clinics, and Medical Corridors
- Large Working Halls, Airports, Commercial Lobbies, and Retail Zones
